A lag bolt (or lag screw) keeps spinning because the hole has become stripped, meaning the internal threads of the material have sheared away. To fix a spinning lag bolt in wood, you must fill the stripped void. The most structurally sound method is to drill the hole out, glue a hardwood dowel into the space, and drill a fresh pilot hole. For a spinning lag bolt in masonry or concrete, the lag shield anchor has likely failed; you must remove the bolt, clean the hole, and insert a new, larger anchor or use chemical anchoring epoxy.

When you’re wrenching down a heavy-duty lag bolt to secure a deck, mount a TV, or build a pergola, feeling that bolt suddenly lose resistance and spin freely is a sinking feeling. Because lag bolts are designed to bear immense loads, a spinning bolt is a severe structural failure.

This comprehensive guide is optimized to help you diagnose exactly why your lag bolt failed, execute the proper professional-grade repair for both wood and masonry, and prevent it from ever happening again.

Part 1: Why is Your Lag Bolt Spinning? (The Mechanics of Failure)

Before applying a fix, you must understand why the bolt failed. Lag bolts (technically called lag screws because they have their own threads and taper to a point) do not use nuts to secure themselves. They rely entirely on the mechanical friction of their coarse threads biting deep into the surrounding material.

When a lag bolt spins endlessly, it means the material surrounding the threads has been destroyed. ### The 3 Main Culprits of a Stripped Hole

1. Over-Torquing: Using an impact driver or a long socket wrench to tighten the bolt past its limit. Once the head of the bolt is flush, continuing to turn it will cause the threads to act like a drill bit, violently shredding the wood or anchor material around it.
2. Incorrect Pilot Hole Size: If your pilot hole was too large, the threads have nothing to bite into. If the pilot hole was too small (or non-existent), the immense pressure of the thick bolt can split the wood internally, causing the hole to lose its grip.
3. Rot or Material Degradation: In outdoor applications (like decks or retaining walls), water intrusion can rot the wood deep inside the hole. The bolt will spin because it is essentially turning inside wet mulch.

Part 2: How to Fix a Spinning Lag Bolt in Wood

Because lag bolts are used for heavy structural loads, the “toothpick trick” used for tiny hinge screws is not sufficient or safe for a lag bolt. You need a structural repair. Here are the three best methods, ranked by strength.

Method 1: The Hardwood Dowel Plug (Strongest & Safest)

This is the gold standard for repairing a stripped lag bolt hole in structural timber, such as deck joists or wall studs. It involves replacing the damaged wood with a solid core of new hardwood.

Tools & Materials Needed:

• Hardwood dowel (oak or birch, slightly larger than your stripped hole)
• Wood drill bit matching the dowel size
• High-quality wood glue or construction adhesive
• Flush-cut saw or chisel

Step-by-Step Execution:

1. Remove the Bolt: Back the spinning bolt out. If it won’t grip to reverse out, wedge a pry bar or flathead screwdriver under the bolt head, apply upward pressure, and turn the bolt counter-clockwise with a socket wrench.
2. Drill Out the Damage: Use a drill bit that is the exact diameter of your hardwood dowel. Drill directly into the stripped hole to clear out the shredded, damaged wood fibers. Create a clean, perfectly round cylinder.
3. Size the Dowel: Cut your hardwood dowel slightly longer than the depth of the hole.
4. Glue and Insert: Coat the dowel heavily in wood glue. Drive it into the hole using a hammer or mallet until it bottoms out.
5. Trim and Dry: Let the glue cure completely (usually 24 hours for structural integrity). Once dry, cut the protruding dowel flush with the surface of the wood.
6. Redrill and Drive: You now have a solid piece of wood. Drill a proper-sized pilot hole directly into the center of the dowel, and drive your lag bolt back in.

Method 2: Upsizing the Lag Bolt (Fastest)

If the aesthetic of the bolt head doesn’t matter, and the surrounding wood is thick and healthy, simply using a larger bolt is the fastest solution.

• Increase the Diameter: If you stripped a 1/4-inch lag bolt, step up to a 5/16-inch lag bolt. The wider threads will cut completely new paths into the undamaged wood just outside the stripped zone.
• Increase the Length: If you cannot increase the thickness, use a lag bolt that is 1 to 2 inches longer (ensuring it won’t puncture the other side of the material). This allows the bolt to reach deeper, untouched wood grain to find its bite.

Method 3: Two-Part Wood Epoxy Filler

If the hole is misshapen or you are dealing with minor rot that you have scraped out, structural wood epoxy can cast a new hole.

1. Blow all dust and debris out of the stripped hole.
2. Mix a two-part structural wood epoxy (liquid or putty form).
3. Pack the epoxy deep into the hole using a putty knife or stick, ensuring there are no air pockets.
4. Allow the epoxy to cure fully until it is rock hard.
5. Drill a new pilot hole directly into the hardened epoxy and drive your lag bolt.

Part 3: How to Fix a Spinning Lag Bolt in Masonry or Concrete

You cannot screw a lag bolt directly into concrete, brick, or mortar. They require a metal or plastic lag shield anchor. When a lag bolt spins in masonry, it almost always means the anchor itself has failed, lost its friction, and is spinning inside the concrete alongside the bolt.

Method 1: The Shimming Trick (Quick Fix)

If the metal lag shield is just slightly loose in the hole and spinning before it can expand, you can create temporary friction.

• Back the bolt out slightly.
• Slip a few pieces of thick copper wire, large zip-ties, or metal shims down the side of the hole between the concrete and the outside of the metal anchor.
• As you tighten the bolt, the shims will wedge the anchor against the concrete walls, forcing the shield to bite and expand.

Method 2: Replace with a Wedge Anchor or Sleeve Anchor

Lag shields are an older technology. If your hole has stripped out, it is highly recommended to abandon the lag bolt entirely and upgrade to a modern concrete anchor.

Wedge Anchors: These are single-piece solid steel bolts. You drop them into the drilled hole and tighten the nut on the outside. As you tighten, a metal collar at the bottom expands violently, locking permanently into the concrete. They have incredibly high shear and pull-out strength and are immune to the “spinning” problem of two-piece lag shields.

Method 3: Chemical Anchoring (Heavy Duty)

If the concrete or brick around the hole has crumbled, leaving a gaping void, mechanical anchors will no longer work. You must use chemical epoxy.

1. Remove the spinning bolt and the failed lag shield.
2. Thoroughly clean the hole using a wire brush and a compressed air duster. (Crucial: Epoxy will not bond to concrete dust).
3. Inject a heavy-duty masonry anchoring adhesive (like Simpson Strong-Tie epoxy) deep into the hole, filling it about 2/3 of the way full.
4. Insert a threaded rod (or your lag bolt, though threaded rod is preferred for epoxy) directly into the wet adhesive, twisting it slightly to remove air bubbles.
5. Allow it to cure to the manufacturer’s specifications (usually 24-48 hours). The bolt is now permanently fused to the masonry.

Part 4: Best Practices to Prevent Spinning

Prevention always comes down to the pilot hole. A pilot hole removes exactly enough material to allow the solid steel core of the lag bolt to pass through, leaving only enough wood for the coarse threads to bite into.

Standard Lag Bolt Pilot Hole Size Chart (Wood)

Lag Bolt Diameter	Pilot Hole Size (Softwood: Pine, Cedar)	Pilot Hole Size (Hardwood: Oak, Maple)	Clearance Hole Size (First Piece of Wood)
1/4″	3/16″	3/16″	1/4″
5/16″	1/4″	1/4″	5/16″
3/8″	1/4″	5/16″	3/8″
1/2″	3/8″	7/16″	1/2″

Note: The “Clearance Hole” is drilled only through the first piece of wood you are attaching. It should be the exact diameter of the bolt so the bolt slides through freely, allowing the threads to pull the two pieces of wood tightly together.

Pro-Tips for Installation

• Use Wax or Soap: Lag bolts generate immense friction. Before driving a heavy lag bolt into a tight pilot hole, rub the threads with a bar of soap, beeswax, or candle wax. This acts as a lubricant, preventing the bolt from snapping in half under the torque and reducing the chance of stripping the hole.
• Stop the Impact Driver Early: Impact drivers are notorious for stripping lag bolts because it’s hard to feel the resistance. Drive the bolt with a power tool until it is about 1/4 inch away from flush. Finish tightening the last few turns manually with a socket wrench so you can feel exactly when it locks down tight.

When calculating the right fastener for a heavy load—like building a deck, mounting a massive TV, or hanging a porch swing—you have to think like an engineer. It’s not just about how much the object weighs; it’s about how that weight pulls on the hardware.

To determine the right fastener, you need to understand the two main forces at play: Shear and Tensile strength, and how the two titans of heavy construction (Lag Bolts and Structural Screws) handle them.

1. Understanding the Forces

Shear Strength (The Guillotine Effect)

Shear force is gravity pulling straight down perpendicular to the fastener. Imagine mounting a heavy cabinet to a wall; the cabinet wants to slide straight down the wall towards the floor. The fastener is resting inside the wood, and the load is trying to chop the bolt in half like a guillotine.

• Best Fastener: Thick fasteners with massive steel cores.

Tensile / Withdrawal Strength (The Pull-Out Effect)

Tensile force is the load pulling straight out, parallel to the fastener. Imagine a porch swing hanging from a ceiling joist. The weight is trying to pull the screw straight down and out of the wood.

• Best Fastener: Fasteners with deep, aggressive threads that bite deeply into the surrounding wood grain.

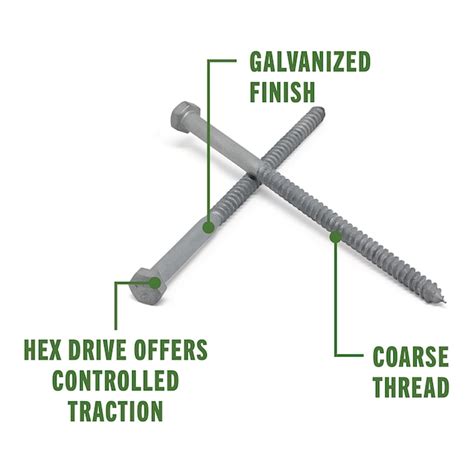

2. The Showdown: Lag Bolts vs. Structural Screws

For decades, the 1/2-inch galvanized lag bolt was the only answer for heavy loads. Today, modern structural wood screws (often sold under brands like GRK, Spax, or TimberLok) have largely replaced them in modern carpentry. Here is how they compare:

Feature	1/2″ Lag Bolt	5/16″ Structural Screw
Material	Standard carbon steel	Heat-treated, hardened steel
Pre-Drilling	Required. (Will split wood if not pre-drilled)	Not Required. (Self-tapping tips cut their own path)
Shear Strength	Higher. The massive 1/2-inch core makes it incredibly hard to chop in half.	Moderate. They are thinner, but the hardened steel gives them a surprisingly high shear rating.
Tensile Strength	Moderate. The threads are coarse but shallow.	Higher. The threads are razor-sharp and dig deeply into the wood grain, resisting pull-out.
Failure Mode	Brittle. If over-torqued or pushed past its shear limit, it snaps suddenly with a loud pop.	Ductile. Under extreme shear loads, the hardened steel will bend heavily before it breaks, giving visual warning of failure.

3. The Golden Rule: The Safety Factor

Engineers never calculate a fastener for the exact weight of the object. They use a Safety Factor (or Design Factor). Wood is a natural material; it has knots, it rots, and it shrinks.

If you are hanging a 200 lb load, you do not buy a screw rated for 200 lbs. You use a minimum 4:1 safety factor. You calculate the hardware as if it needs to hold 800 lbs. If the load involves human life (like a balcony or a swing), engineers often use a 6:1 safety factor.

To help you visualize how these forces dictate your hardware needs, I’ve built an interactive load calculator below. You can adjust the weight, the direction of the force, and the safety factor to see roughly how many of each fastener you would need for a safe installation.

Frequently Asked Questions

How do I remove a lag bolt that just keeps spinning?

Wedge a flathead screwdriver or a pry bar beneath the head of the spinning lag bolt. Apply strong upward leverage (pulling the bolt away from the wall/wood) while simultaneously using a socket wrench to turn the bolt counter-clockwise. The upward pressure will force the remaining threads to catch on the damaged material and back out.

Can I use wood filler for a lag bolt?

No. Standard wood filler, wood putty, and spackle have absolutely zero structural strength. If you drive a lag bolt into standard wood filler, it will crumble instantly under load. You must use a two-part structural wood epoxy or drill and plug the hole with solid hardwood.

Why did my lag bolt snap in half?

A lag bolt snaps (shears) when the torque applied to the head of the bolt exceeds the strength of the steel, usually because the pilot hole was too small or not deep enough. The threads get locked in the wood, but your wrench keeps turning the head, twisting the metal until it breaks. Always drill a pilot hole the full length of the bolt and lubricate the threads.
