Fix U0121 Obd Code: Lost Communication With Abs Module
That glowing ABS or traction control light on your dashboard is more than just a nuisance. When your scan tool pulls the U0121-00 code, your car is telling you that the engine computer has lost its digital heartbeat with the anti-lock brake system module. You are dealing with a communication breakdown on the vehicle network that prevents these critical safety systems from talking to each other properly.
U0121-00 is a diagnostic trouble code defined as Lost Communication with Anti-Lock Brake System (ABS) Control Module. This fault occurs when the main controller fails to receive data over the CAN bus for more than 500 milliseconds, typically caused by damaged wiring, corroded harness connectors, or a failed electronic brake control module.
U0121-00 Code Explained: Lost Abs Communication
The U0121-00 code indicates that the Powertrain Control Module (PCM) can no longer communicate with the Anti-lock Brake System (ABS) control module. This is a network fault rather than a mechanical failure of the brake hardware itself.
Communication codes, often called U-codes, focus on the data highway of the vehicle. They trigger when a module stops sending its expected heartbeat signal to other computers. This usually results in a disabled traction control system and an illuminated ABS warning light on the dashboard.
The Role Of The Can Bus And Abs Module
The Controller Area Network (CAN bus) is the digital nervous system of the car. It uses a pair of twisted wires to transmit high-speed data between the engine, transmission, and braking modules. A break in this wiring or a blown fuse can silence the ABS module completely.
The ABS module is a critical hub for safety and vehicle stability. It monitors wheel speed and manages brake pressure to prevent skidding during hard stops. Other systems, such as the transmission and electronic stability control, rely on this data to function correctly.
| Code Type | What it Means | Common Example |
|---|---|---|
| U-Code (Network) | The computers cannot talk to each other. | Broken wire or dead module. |
| C-Code (Chassis) | A specific part in the system failed. | Bad wheel speed sensor. |
Pro tip: Always check the ABS fuse and battery voltage before replacing a module. Low voltage often causes ghost communication codes that disappear once the battery is fully charged or the alternator is fixed.
For instance, a corroded connector at the ABS module can create high resistance. This prevents the digital signal from reaching the PCM, even if the module is internally healthy.
In practice, this code is common on vehicles with exposed wiring harnesses in the engine bay. Road salt and moisture often eat through the insulation, causing the CAN bus wires to short against the chassis.
Common Symptoms Of U0121-00
Owners often notice the ABS or Traction Control light illuminated on their dashboard when U0121-00 is stored in the vehicle’s onboard computer. This warning light can be accompanied by other symptoms, including harder steering due to power steering system issues, and in some cases, no noticeable change in braking performance. The lack of a braking change is often due to the vehicle’s electronic stability control system being able to compensate for the loss of ABS communication, but this does not necessarily mean the issue is resolved.
Other common symptoms of U0121-00 include:
It’s essential to note that some vehicles may exhibit no symptoms at all, and the U0121-00 code may only be detected using a scan tool or code reader.
For example, in a scenario where the ABS module is faulty, the vehicle’s computer may not be able to communicate with it, resulting in the U0121-00 code being stored. In this case, the ABS light may be illuminated, and the power steering may feel harder or less responsive.
In practice, the U0121-00 code can be caused by various factors, including wiring issues, faulty ABS sensors, or a malfunctioning ABS module. It’s crucial to diagnose the issue correctly to ensure proper repair and to avoid any potential safety risks.
Top 5 Causes Of U0121-00
Corrosion raises resistance, preventing the ABS module from communicating properly with the vehicle’s computer. This can cause the U0121-00 code to be triggered, leading to a malfunctioning anti-lock braking system. Other causes include damaged CAN bus wiring or splices, which can disrupt communication between the ABS module and the vehicle’s computer.
Here are the top 5 causes of U0121-00, in no particular order:
It’s worth noting that these causes can be interrelated, and diagnosing the issue can be complex. In some cases, multiple causes may be present, making it essential to use a combination of diagnostic tools and techniques to identify the root cause of the problem.
For example, if the ABS module connectors are corroded, it may also be causing damage to the CAN bus wiring or splices. In this case, repairing the connectors may also require replacing the damaged wiring or splices to ensure proper communication between the ABS module and the vehicle’s computer.
In practice, it’s essential to use a combination of diagnostic tools, such as a code reader and a scan tool, to identify the root cause of the problem. Additionally, it’s crucial to follow proper repair procedures to ensure that the issue is resolved and the vehicle is safe to drive.
According to William Orellana, a Master Mechanic and Mechanical Engineer with over 30 years of experience, “The U0121-00 code is often caused by a combination of factors, including corrosion, damage to the CAN bus wiring or splices, and failed ABS control modules. In some cases, the issue may be more complex, requiring a combination of repairs to resolve the problem.”
It’s essential to note that diagnosing and repairing the issue can be complex and may require specialized knowledge and tools. If you’re not experienced in automotive repair, it’s recommended to seek the help of a professional mechanic to ensure that the issue is resolved safely and correctly.
In many cases, the repair cost can vary depending on the severity of the issue and the type of vehicle. However, according to OBDIITech, a typical repair cost for the U0121-00 code can range from $500 to $2,000, depending on the extent of the damage and the type of repairs required.
Step-by-step Diy Diagnosis
The U0121-00 code is triggered when the Engine Control Module (ECM) detects a loss of communication with the Anti-Lock Brake System (ABS) control module. This can be due to a faulty ABS module, wiring issues, or problems with the ECM itself. In order to diagnose the issue, it’s essential to follow a systematic approach to identify the root cause.
By following this step-by-step approach, you can help identify the root cause of the U0121-00 code and determine the necessary repairs to get your vehicle back on the road.
In practice, it’s essential to be methodical and thorough when diagnosing the U0121-00 code. By following these steps, you can help ensure that the root cause of the issue is identified and the necessary repairs are made to get your vehicle running safely and efficiently.

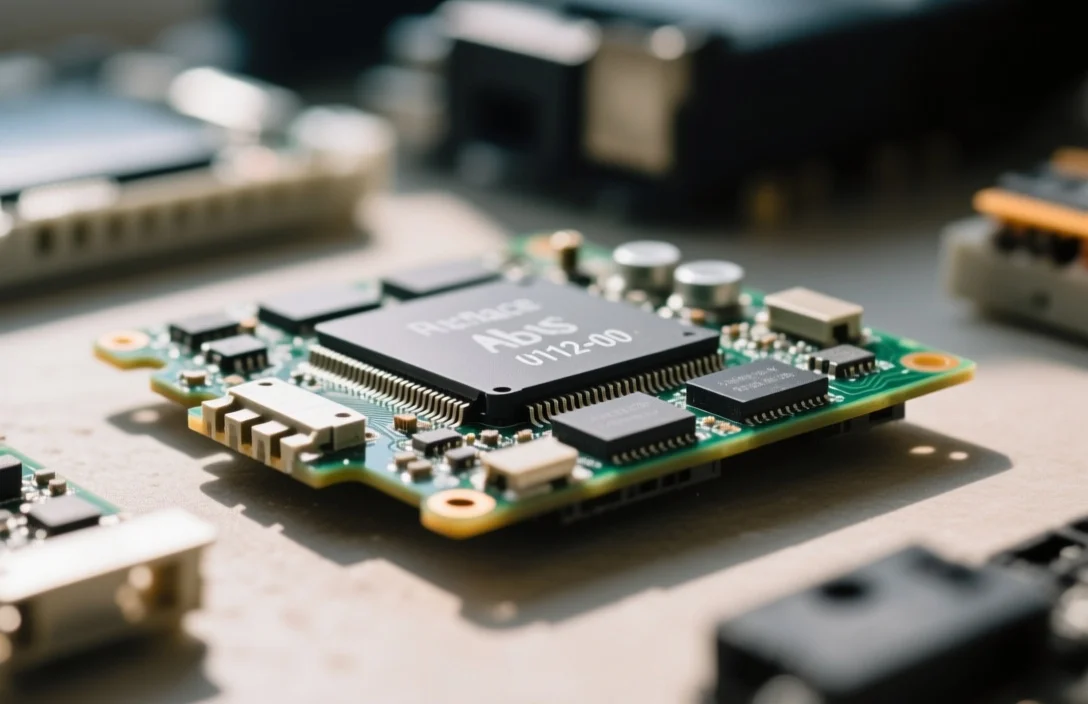

When To Replace The Abs Module
Replacement of the Anti-lock Brake System (ABS) module is necessary only after electrical power and ground circuits are verified as functional. A dead module typically exhibits a total lack of communication with your OBD-II scan tool, even when the ignition is in the “ON” position.
Signs Of Permanent Module Failure
Internal hardware failure often manifests as a persistent U0121-00 code that refuses to clear despite verified wiring integrity. You may also notice the ABS warning light remains illuminated constantly, or it flickers when you hit bumps in the road, indicating a cracked solder joint inside the unit itself.
Pro Tip: Before condemning the module, ensure your battery voltage is strictly within the 12.6 to 14.5-volt range. Low voltage can mimic a dead module by preventing the unit from booting up properly.
Reprogramming And Component Selection
Modern vehicles require that a replacement ABS module be programmed to the specific Vehicle Identification Number (VIN) and current software calibration. Without this step, the new unit will not communicate with the Engine Control Module or the Body Control Module, leaving you with active warning lights.
Always confirm if your specific model requires a “Service Bleed” procedure after installation. This process uses a scan tool to cycle the internal solenoids, ensuring all trapped air is purged from the ABS pump valves.
Estimated Repair Costs
Repair costs for communication loss with the ABS control module typically range from $120 to $1,200, depending on the root cause and whether the work is done at a dealer or independent shop. Labor rates vary by region, but most shops charge $100 – $150 per hour for diagnostic time and electrical repairs.
| Repair Type | Part Cost | Labor Hours | Total Estimate (Parts + Labor) |
|---|---|---|---|
| Wiring repair or connector replacement | $10 – $80 | 1 – 3 hours | $120 – $500 |
| Battery or voltage issue resolution | $50 – $250 | 0.5 – 1.5 hours | $100 – $450 |
| ABS module replacement (new OEM part) | $300 – $900 | 2 – 4 hours | $500 – $1,500 |
| ABS module reprogramming (dealer only) | $0 – $150 | 1 – 2 hours | $100 – $400 |
Wiring repairs are the most common fix and usually the least expensive. Corroded or damaged connectors near the ABS module or wheel speed sensors often cause intermittent communication errors. A shop will typically charge 1 – 2 hours of labor to inspect and repair wiring harnesses, with parts like terminals or heat-shrink tubing adding minimal cost.
Battery or voltage issues may require a new battery, alternator, or ground strap. A weak battery can trigger false communication errors, especially in cold weather. Shops often perform a charging system test first, which takes about 30 minutes, before recommending replacement parts.
ABS module replacement is the most expensive repair, with parts alone costing $300 – $900 for most vehicles. Labor adds another 2 – 4 hours, as the module may need to be removed from under the hood or behind the brake master cylinder. Some shops offer remanufactured modules at a lower price, but these may not include the latest software updates.
Dealer pricing tends to be 20 – 30% higher than independent shops for the same repair. Dealers have access to manufacturer-specific diagnostic tools and software updates, which can be critical for newer vehicles. Independent shops often use aftermarket scan tools that may not support all programming functions, limiting their ability to perform module reprogramming.
For example, a 2015 Ford F-150 with a U0121 code might require a $700 ABS module from the dealer, plus 3 hours of labor at $130/hour, totaling around $1,100. An independent shop could install a remanufactured module for $400, reducing the total to $750, but might not be able to update the module’s software.
Safety Disclaimer For Abs Repairs
The Anti-lock Brake System (ABS) prevents wheels from locking during hard braking to maintain steering control. A failure in this system or an incorrect repair can lead to unpredictable vehicle behavior during an emergency stop.
Critical Risks Of Diy Brake Work
Braking systems are the most vital safety component of any vehicle. Mistakes during the repair of an ABS module or wiring can compromise the entire hydraulic circuit.
Incorrectly installed components can cause the brakes to lock up or fail to engage entirely. This creates a high risk of collisions if the vehicle is driven on public roads before a professional verification.
A “spongy” or soft brake pedal after a repair is a sign of air in the system. This is a critical failure that makes the car unsafe to drive.
When To Call A Professional
Some tasks are too dangerous for home garages without specialized equipment. Use the following table to determine if you should stop and call a certified technician.
| Symptom/Scenario | Risk Level | Required Action |
|---|---|---|
| Spongy Brake Pedal | Extreme | Professional Pressure Bleed |
| Module Requires Coding | High | Dealership Programming |
| Leaking Brake Fluid | Extreme | Immediate Tow to Shop |
| Persistent Warning Lights | Medium | Advanced Diagnostic Scan |
Professional mechanics have the tools to verify the hydraulic integrity of the system. They use pressure testers and high-end scanners to ensure the module communicates correctly with the rest of the car.
Quick Summary
The U0121-00 code signals a lost communication error with the Electronic Brake Control Module, requiring prompt diagnosis.
| Item | Details |
|---|---|
| Code | U0121-00 |
| Module | Electronic Brake Control Module (EBCM) |
| Symptoms | ABS light, traction control off, hard steering |
| Tools needed | OBD-II scanner, multimeter, wiring diagram |
Frequently Asked Questions
What Does The U0121-00 Code Mean For My Vehicle?
The u0121-00 code typically indicates a problem with the electronic brake control module, which can cause issues with your vehicle’s braking system. The exact cause may vary, but it’s essential to have a professional mechanic diagnose and repair the issue to ensure your safety on the road.
Can I Drive My Vehicle With The U0121-00 Code Active?
It’s not recommended to drive your vehicle with the u0121-00 code active, as it can cause problems with your braking system. However, if the light is stable and not flashing, you may be able to drive your vehicle for a short period, but it’s best to have it checked and repaired as soon as possible.
How Long Does It Take To Fix A U0121-00 Code?
The time it takes to fix a u0121-00 code can vary depending on the cause and complexity of the repair. In some cases, it may be a simple fix, while in others, it may require more extensive work. On average, it can take anywhere from a few hours to a full day to diagnose and repair the issue.
Can I Fix The U0121-00 Code Myself?
It’s not recommended to try to fix the u0121-00 code yourself, as it requires specialized knowledge and equipment. Additionally, attempting to repair the issue yourself can lead to further damage and potentially put you and others at risk. It’s best to consult a professional mechanic who has the necessary expertise and experience.
What Is The Estimated Cost To Repair A U0121-00 Code?
The estimated cost to repair a u0121-00 code can vary depending on the cause and complexity of the repair. On average, it can range from $200 to $1,000 or more, depending on the required parts and labor. It’s essential to have a professional mechanic provide a detailed estimate before any work is done.
