Diagnose U0403 Code: Transfer Case Data Error Fix
When your car’s onboard computer throws a U0403 code, it can be a stressful experience, especially if you’re not familiar with the technical jargon. The “U0403 – Implausible Data Received From T-Case” code is a specific warning that indicates a problem with the transfer case control module, a crucial component of your vehicle’s drivetrain. This article will guide you through the causes, symptoms, and troubleshooting steps to resolve this issue, helping you get back on the road with confidence.
The U0403 code is typically caused by faulty sensors, software issues, or electrical problems in the transfer case control module. Common symptoms include transmission slipping, failure to engage gears, and unusual noises from the drivetrain. If you’re experiencing any of these issues, it’s essential to address the problem promptly to avoid further damage to your vehicle. In most cases, a thorough inspection and repair or replacement of the affected components can resolve the issue.
U0403 – Implausible Data Received From T-case: The Basics
The U0403 code is a generic OBD-II code that indicates a communication issue between the Transfer Case Control Module (TCCM) and the Engine Control Module (ECM). This error code is caused by the ECM receiving invalid or implausible data from the TCCM, which can lead to various symptoms and potentially affect the vehicle’s performance.
The TCCM is responsible for controlling the transfer case, which is a critical component in four-wheel drive (4WD) and all-wheel drive (AWD) systems. The TCCM receives data from various sensors, including the speedometer, throttle position sensor, and transfer case position sensor. If the ECM receives invalid data from the TCCM, it can cause the engine to malfunction or experience a loss of performance.
| Component | Typical Symptoms | Probable Causes |
|---|---|---|
| TCCM | Loss of 4WD or AWD function, engine misfire, reduced engine performance | TCCM malfunction, faulty sensor, loose connections |
| ECM | Engine misfire, reduced engine performance, loss of power | ECM software issues, faulty sensor, loose connections |
Common Symptoms Of U0403
Service 4WD system warning lights illuminate on the dashboard, typically accompanied by a malfunction indicator light. This is the primary indication that a communication fault has occurred between the T-Case control module and the vehicle’s onboard computer. In some cases, the warning light may flash or blink, indicating a more severe issue with the transfer case or its associated systems.
Primary Causes Of U0403
Communication failures between the Transfer Case Control Module (TCCM) and the Powertrain Control Module (PCM) typically stem from high electrical resistance or logic errors within the CAN bus network. These faults prevent the modules from exchanging valid status signals, resulting in the system flagging the data as implausible.
Wiring Harness And Connector Issues
Corrosion remains the most frequent culprit for this communication breakdown, especially in vehicles that see heavy winter road salt or frequent off-road use. Moisture infiltration into the TCCM connector pins creates oxidation, which increases resistance and corrupts the digital signal sent over the controller area network.
Physical damage to the chassis wiring harness also occurs when the harness rubs against the underbody or gets pinched during previous drivetrain work. Look for the following signs when inspecting the wiring:
Mechanic’s Tip: Use a multimeter to perform a voltage drop test across the CAN bus wires before replacing any expensive modules. A difference of more than 0.1 volts indicates high resistance that will trigger this code regardless of the module’s health.
Tccm Software And Hardware Failure
Internal logic errors within the TCCM itself can cause it to broadcast corrupt data packages to the rest of the vehicle. This hardware failure often appears after a power surge, such as a jump-start performed incorrectly or a failing alternator that produces excessive voltage ripple.
| Component | Failure Mode | Impact on Data |
|---|---|---|
| TCCM Processor | Logic corruption | Sends nonsensical signals to PCM |
| CAN Bus Transceiver | Hardware burnout | Complete loss of communication |
| Flash Memory | Software corruption | Stuck in a boot loop or default state |
Software glitches sometimes require a simple calibration or a firmware update from the manufacturer to resolve. If the module has experienced a total hardware failure, the unit usually requires replacement and subsequent programming to match the vehicle’s specific transfer case configuration.
Steps For Professional Diagnosis
The transfer-case control module (TCCM) communicates over the CAN bus, so the first task is to verify the integrity of that network before condemning the module itself. A single corroded splice or chafed harness leg can corrupt every message the TCCM sends, triggering U0403 even when the module is healthy. Always start with a scan that captures all CAN-related codes – U0100, U0121, U0140, and U0403 together point to a bus-level fault, while U0403 alone suggests a localized issue at the TCCM.
On late-model Dodge and Jeep platforms, the TCCM is integrated into the front axle disconnect module. In these cases, U0403 often accompanies C0700 (front axle disconnect circuit fault). Always check the service bulletins for the exact build date – early 2018 – 2020 Ram 1500 trucks had a software calibration that could set U0403 during cold starts, fixed by reflashing the module.
Pro Tip: If the CAN bus checks clean and power/ground are solid, swap the TCCM with a known-good unit before condemning it. Many aftermarket modules lack the correct VIN sync, so use a dealer-provided replacement or ensure the new module is programmed to the vehicle.

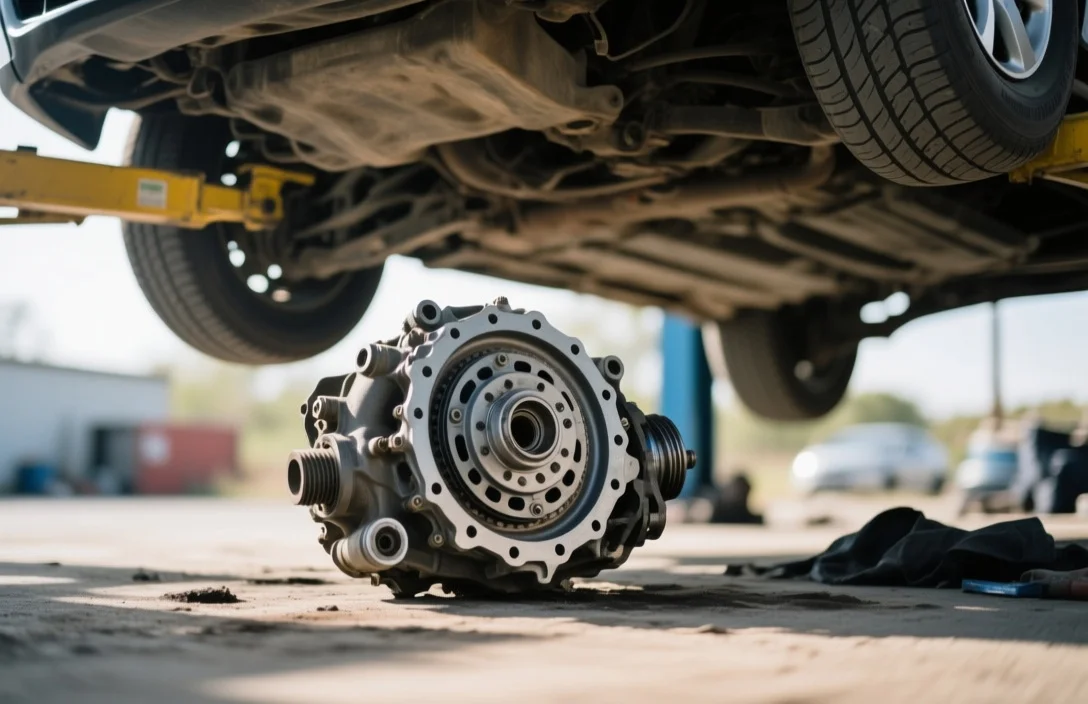

Repair Procedures For Transfer Case Issues
Corrosion raises resistance, causing the transfer case control module (TCCM) to receive invalid data, which triggers the u0403 code. This issue can also be caused by faulty or damaged wiring, loose connections, or a malfunctioning TCCM. To resolve the problem, follow these steps. Reprogramming or Replacing the TCCM If the TCCM is faulty or malfunctioning, reprogramming or replacing it may be necessary. Here are the steps to follow: Troubleshooting Tips Here are some troubleshooting tips to help you diagnose and repair the u0403 code: Use a multimeter to test the wiring and connectors for continuity and resistance. Check for any signs of corrosion, wear, or damage on the wiring and connectors. Inspect the TCCM and its surrounding components for any signs of physical damage or malfunction. Use a scan tool to connect to the vehicle’s onboard diagnostics system and check for any error codes or faults. Consult the repair manual or a repair database for specific repair procedures and troubleshooting tips. Safety Precautions When working on the transfer case, make sure to follow proper safety procedures to avoid injury or damage to the vehicle. Here are some safety precautions to follow: Disconnect the battery before starting work on the transfer case. Use proper lifting techniques and equipment to avoid straining your back or injuring yourself. Wear protective eyewear and gloves when working on electrical components. Make sure to follow proper electrical safety procedures to avoid electrical shock or injury.
Safety Precautions And Essential Tools
Corrosion raises resistance by forming a barrier between the electrical path and the electrical signal, making it difficult to diagnose and repair the problem. When working with electrical systems, it’s essential to use proper safety equipment to avoid electrical shock. Always disconnect the battery before starting work on the electrical system. When diagnosing and repairing the transfer case control module, it’s crucial to use the right tools to avoid damaging the module or other components. A good quality multimeter and a scan tool are essential for diagnosing the problem. Additionally, a wiring diagram and a repair manual specific to the vehicle make and model can be very helpful. Here are some essential tools and safety precautions to consider when working with the transfer case control module:
| Item | Amount/Specification | Notes |
|---|---|---|
| Multimeter | 20-100 MHz digital multimeter | Use a multimeter with a high enough frequency range to measure the signals from the transfer case control module. |
| Scan tool | Generic or manufacturer-specific scan tool | A scan tool can help you read the trouble codes and data from the transfer case control module. |
| Wiring diagram | Vehicle-specific wiring diagram | A wiring diagram can help you understand the electrical connections and circuitry of the transfer case control module. |
| Repair manual | Vehicle-specific repair manual | A repair manual can provide detailed instructions and troubleshooting guides for the transfer case control module. |
Additional safety tips:
Quick Summary
The U0403 code indicates an implausible data received from the transfer case control module, requiring a thorough diagnosis and repair.
| Code | Description |
|---|---|
| U0403 | Implausible data received from transfer case control module |
Frequently Asked Questions
What Causes The U0403 Code To Be Stored In My Vehicle’s Onboard Computer?
The u0403 code is stored when the transfer case control module receives invalid or implausible data, which can be caused by a faulty sensor, wiring issue, or a problem with the transfer case itself. Common causes of this code include a faulty speed sensor, a clogged transfer case filter, or a malfunctioning transfer case control module.
How Much Does It Cost To Repair The Issue Causing The U0403 Code?
The cost to repair the issue causing the u0403 code can vary widely, depending on the cause and location of the problem. In some cases, a simple sensor replacement may only cost around $50-$100, while a more complex repair, such as replacing the transfer case control module, can cost upwards of $1,000-$2,000. On average, repairs can cost anywhere from $200-$1,500.
Is It Safe To Drive My Vehicle With The U0403 Code Stored?
It’s not recommended to drive your vehicle with the u0403 code stored, as it can indicate a problem with the transfer case, which can lead to further damage and potentially cause a loss of power or control while driving. Driving with this code can also lead to increased wear on other components, such as the transmission and drivetrain.
Can I Diagnose And Repair The Issue Myself, Or Do I Need To Take It To A Mechanic?
While it’s possible to diagnose and repair the issue yourself, it’s highly recommended to take your vehicle to a qualified mechanic who has experience working with transfer cases. They can use specialized equipment to diagnose the problem and perform the necessary repairs to ensure that the issue is fixed correctly and safely. Professional diagnosis and repair can help prevent further damage and ensure your safety on the road.
Can The U0403 Code Be Caused By A Software Issue Or A Faulty Sensor?
Yes, the u0403 code can be caused by a software issue, such as a faulty program or a miscommunication between the transfer case control module and other components. However, the most common causes of this code are related to faulty sensors or wiring issues. A faulty speed sensor is one of the most common causes of this code.
How Long Does It Typically Take To Repair The Issue Causing The U0403 Code?
The time it takes to repair the issue causing the u0403 code can vary depending on the cause and location of the problem. In some cases, a simple repair may only take a few hours, while a more complex repair can take several days or even weeks. On average, repairs can take anywhere from 2-10 hours, depending on the complexity of the repair.
